The Community Based Follow-up use case allows any system to make requests to a CHIS for patient follow-up.  A common implementation is for Lost to Follow-Up whereby a clinic generates a list of patients who have missed appointments for follow-up through CHIS. During the follow-up, Community Health Workers (CHW) encourage the identified patients to attend their appointments and seek to understand the reason for non-attendance. The follow-up process may involve a CHW physically going to find the patient or reaching out through other communication protocols such as phone call or SMS.

Useful Links

Table of Contents for this page


  1. Requesting System: Any system that wants a CHW to find and follow-up a patient. The requesting system will often be an EMR like OpenMRS
  2. CHIS: A Community Health Information System is an information system that supports the routine and emergency health care of a patient population within community contexts in defined geographic areas.
  3. CHW: Community Health Workers are the central users of CHIS. CHWs conduct household visits and are responsible for the health of their community.
  4. SHR: Shared Health Record is a centralized data repository for storing patient’s shared health record.

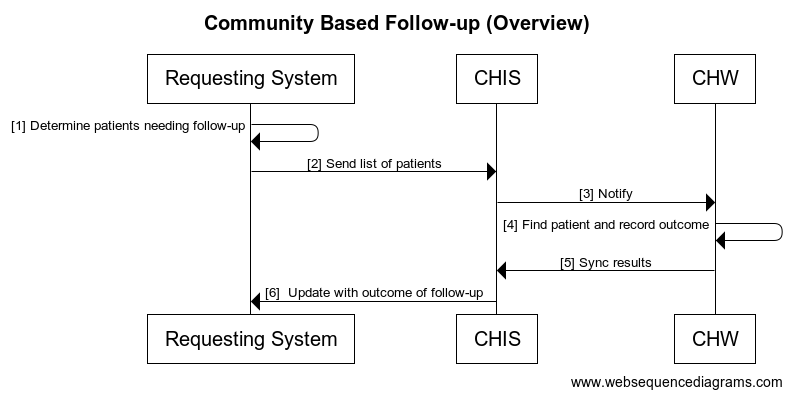

Workflow Overview

From a very high level perspective, the workflow is designed around having the Requesting System determine which patients need to be followed-up with and a CHW trying to find the patient and recording the outcome of their attempt(s).

  1. Requesting System → Determine patients needing follow-up
  2. Requesting System → Sends list of patients
  3. CHIS → Gives notification for patients requiring follow-up
  4. CHW→ Finds patient and records the follow-up outcome
  5. CHW→ Syncs results captured on CHIS
  6. CHIS→  Updated with follow-up outcome

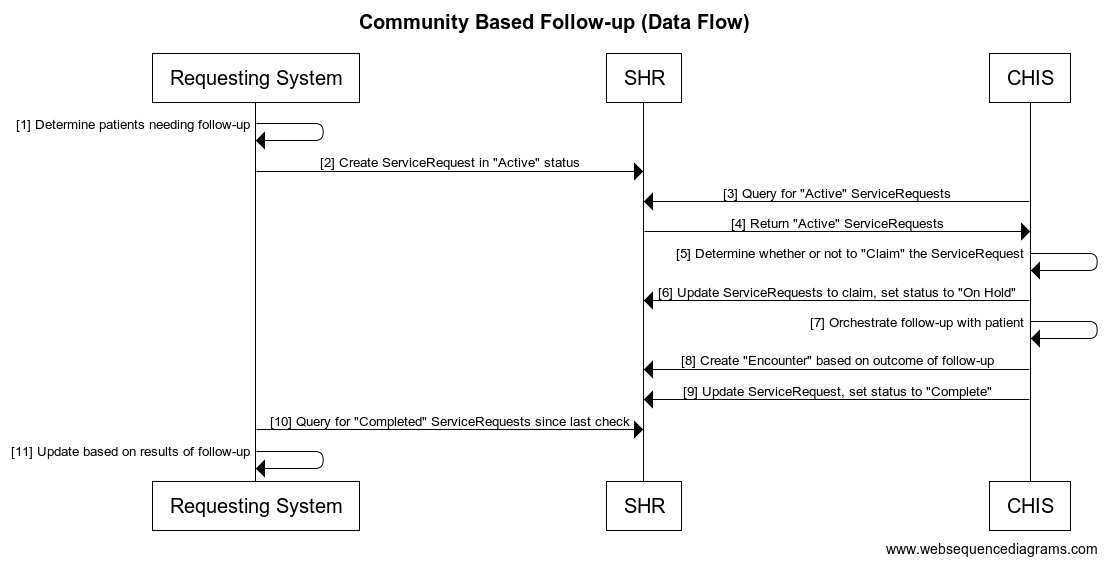

Data Flow (High Level)

The flow is centered around the use of the FHIR "ServiceRequest" resource to initiate follow-ups in the community.

  1. Requesting system determines which patients need follow-up
  2. Requesting system creates a ServiceRequest for each patient and sends the ServiceRequest to HIE
  3. CHIS queries the HIE to determine if there are any patients to be followed-up
  4. Requesting system returns results of CHIS' query
  5. CHIS determines whether or not to claim the service request
  6. CHIS "claims" the ServiceRequest to confirm that they will be following up a patient
  7. CHIS alerts the appropriate CHW with finding and advising the patient through a task
    1. This step is detailed below - Data Flow (CHIS / CHW Process)
  8. CHIS records the results of the CHW's efforts
  9. CHIS updates the ServiceRequest
  10. Requesting system receives update
  11. Requesting system updates itself accordingly

Data Flow (demonstration)

This video provides a demonstration of a CHIS fetching a service request in FHIR format (steps 3-9 outlined above).

This video goes through how to configure an application with FHIR resources (specifically for CommCare)

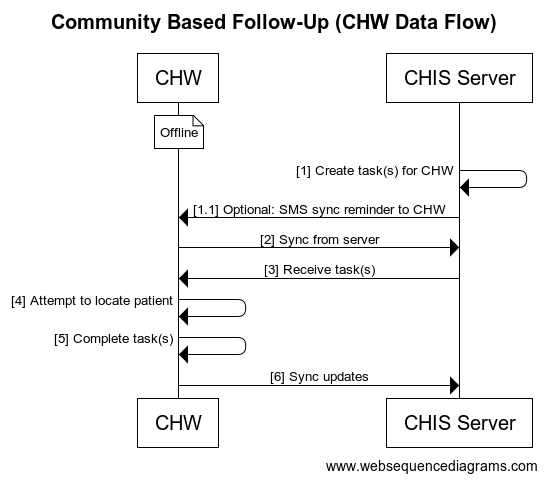

Data Flow (CHIS / CHW Process)

The diagram below illustrates the data flow between the SHR / FHIR Server and CHISs.

Draft Indicators

Based on the high level workflow mentioned above, the list of transactional indicators are below:

  1. Count of ServiceRequests Created
  2. Count of ServiceRequests Completed
  3. Count of ServiceRequests Completed with Outcome of X
  4. Count of ServiceRequests Completed with Outcome of Y
  5. Average Time from Created to Claimed
  6. Average Time from Claimed to Completed
  7. Average Time from Created to Completed

The ultimate goal of these follow-ups is that the patient returns to care. One of the most important indicators to track is % of patients that have returned to care.

Key FHIR Resources

The essential resources for this workflow were created and profiled with minimal fields/concepts and provide only a high level structure to get prototype the workflow. As the results of the Delphi Study become available, these can be profiled in more detail.

Useful Links

Reference Architecture

The proof of concept uses the Instant OpenHIE architecture interacting with multiple CHIS (CommCare, OpenSRP, and CHT).

The current setup includes the following components.

  1. OpenHIM Admin Console
  2. OpenHIM
  4. CHIS

Useful Links

Known Limitations

This proof of concept use case was explored to learn about a number of things among others:

  1. OpenHIE tooling
  2. What modifications are required for CHIS' sharing data
  3. Gain experience with FHIR
  4. Gain experience with Instant OpenHIE

Hence there are more explorations to be made.
